The Dynamic Cone Penetrometer (DCP) is an essential tool in geotechnical engineering, providing invaluable insights into soil strength and composition. Used extensively in field tests, the DCP measures soil resistance to penetration by a standardized cone. In fact, this simple yet effective device enables engineers to evaluate soil conditions quickly, aiding in the design and construction of foundations, roads, and other critical infrastructure.
Whether for road construction, pavement analysis, or site investigation, the DCP remains a cornerstone in modern engineering practices. Let’s discover this tool in more detail!
What is a Dynamic Cone Penetrometer?

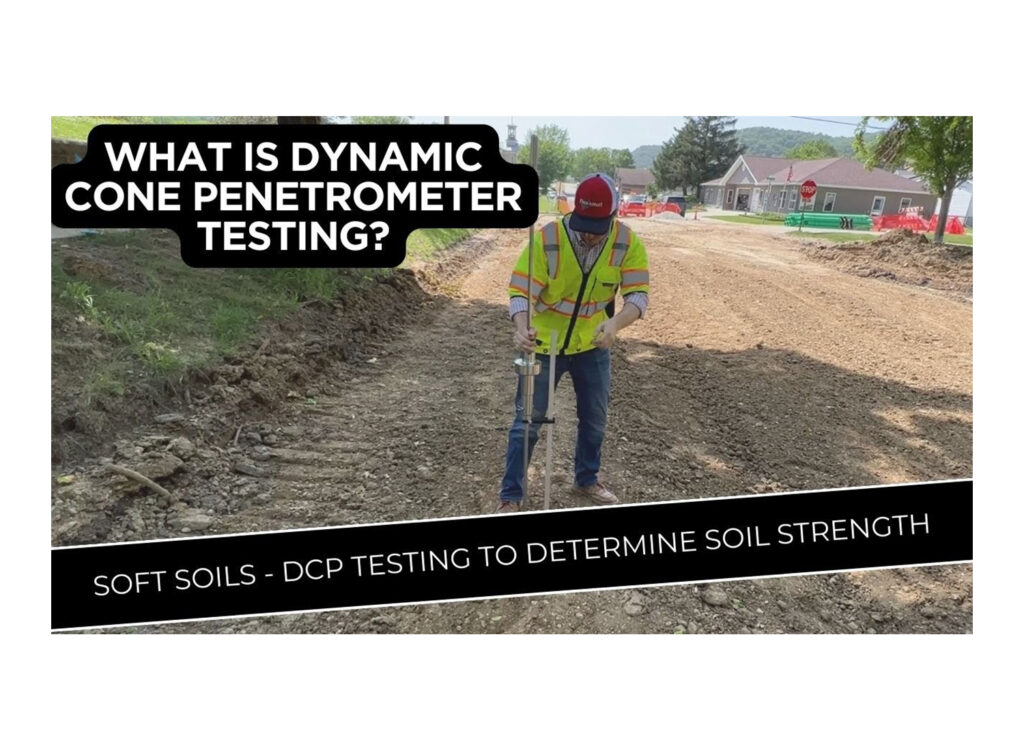

In general, the Dynamic Cone Penetrometer is a robust and versatile tool used extensively in geotechnical engineering to assess soil properties. This device measures the resistance of soil to penetration by a cone-shaped probe, a process known as dynamic cone penetration, providing critical data on soil strength and compaction. The DCP is designed to be portable and easy to use, making it ideal for on-site evaluations where quick, reliable information is necessary.
As the cone penetrates the soil, the tester records the number of blows required to advance the cone a set distance. This data is then used to calculate the soil’s strength and other characteristics, such as density and compaction levels.
The versatility of the DCP also extends to the range of soil types it can evaluate. Whether dealing with cohesive soils, granular materials, or pavement layers, the DCP provides consistent and reliable results. This makes it an indispensable tool for various applications, including road construction, pavement analysis, and foundation design.
Moreover, the data obtained from DCP tests can be used to create detailed soil profiles, helping engineers understand a site’s subsurface conditions. This information is crucial for designing foundations, assessing the suitability of materials, and ensuring the overall stability of structures. By providing accurate and timely soil data, the DCP plays a vital role in the success of construction projects.
Why use Dynamic Cone Penetrometer?
Geotechnical engineers and construction professionals recognize the Dynamic Cone Penetrometer for its multiple benefits, making it an indispensable tool for assessing soil properties. Here are some critical advantages of using a DCP:
Engineers widely use DCP testing to measure the strength of in-situ soil, determine the thickness and location of subsurface soil layers, and assess soil conditions for stabilization.
Portability and ease of use
The lightweight and compact device is easy to transport and use in various field conditions. Its simple design allows a single person to set it up and operate it, making it ideal for quick on-site assessments without requiring specialized training or extensive preparation.
Cost-effectiveness
The Dynamic Cone Penetrometer is a cost-effective solution for soil testing. Unlike other methods that require expensive laboratory equipment and extensive analysis, the DCP provides immediate results at a fraction of the cost. This makes it an attractive option for projects with tight budgets, allowing for comprehensive soil assessment without incurring high expenses.
Rapid and reliable results
The DCP provides rapid soil strength and compaction feedback, enabling engineers to make informed decisions in real time. This immediate data is crucial for project timelines, allowing quick adjustments and validations during construction. The reliability of the results ensures that the data can be trusted for critical decisions.
Versatility across soil types
The Dynamic Cone Penetrometer is highly universal and can evaluate various soil types, including cohesive soils, granular layers, and pavement layers. This adaptability makes it suitable for multiple applications, from road construction and pavement analysis to foundation design and site investigations.
Minimal disruption
Unlike other testing methods that may require significant site disturbance, the DCP causes minimal disruption to the testing area. This is particularly advantageous in sensitive or critical environments where maintaining the site’s integrity is essential.
Enhanced safety
Using a DCP enhances safety by providing accurate soil condition data. This information is vital for designing stable and secure structures. By identifying potential issues early, engineers can implement measures to mitigate risks, ensuring the project’s longevity and safety.
Comprehensive soil profiling
Data from DCP tests create detailed soil profiles, offering insights into a site’s subsurface conditions. These profiles help engineers understand soil behavior and variability. This understanding is crucial for designing appropriate foundations and assessing construction material suitability.
Support for quality control
The DCP is excellent for quality control during construction. It monitors granular layers and subgrade soils in pavement sections. It allows for ongoing soil compaction and strength monitoring, ensuring materials and techniques meet required standards. This continuous assessment maintains high-quality construction practices and reduces future issues.

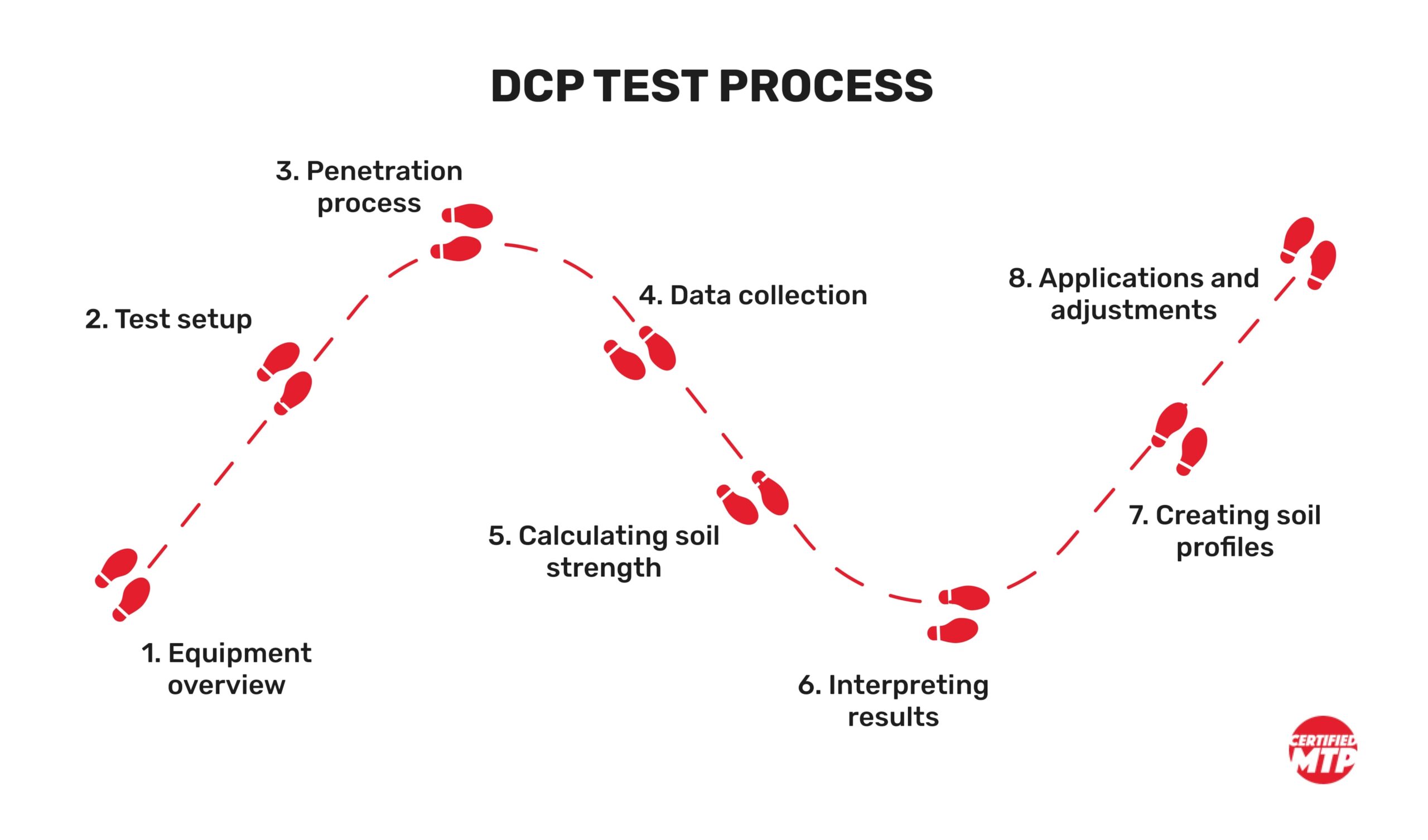

How the Dynamic Cone Penetrometer Test Works
The Dynamic Cone Penetrometer test is a straightforward yet powerful method for assessing soil strength and compaction in the field. Understanding how the DCP test works helps appreciate its utility in various geotechnical engineering applications. Here’s a detailed breakdown of the process:
A vertical scale is used to record the dynamic cone penetration of the soil in inches or millimeters after each blow of the hammer.
1. Equipment overview
The DCP consists of a metal cone attached to the end of a drive rod, a hammer or weight, and a measuring device to track penetration depth. The cone typically has a standardized angle and diameter to ensure consistent results across tests and sites.
2. Test setup
The test begins with setting up the Dynamic Cone Penetrometer at the desired location. The drive rod is positioned vertically with the cone tip resting on the ground surface. The operator ensures that the device is level to avoid skewed results.
3. Penetration process
The penetration process involves lifting and dropping a weight, usually a hammer, from a specified height onto an anvil attached to the drive rod. The force from the hammer drives the cone into the soil. The operator repeats this process, counting the number of blows required to drive the cone a set distance, typically every 10 centimeters.
4. Data collection
As the cone penetrates the soil, the operator records the number of blows per interval. This data is crucial as it correlates directly with the soil’s resistance to penetration, indicating its strength and compaction.
5. Calculating soil strength

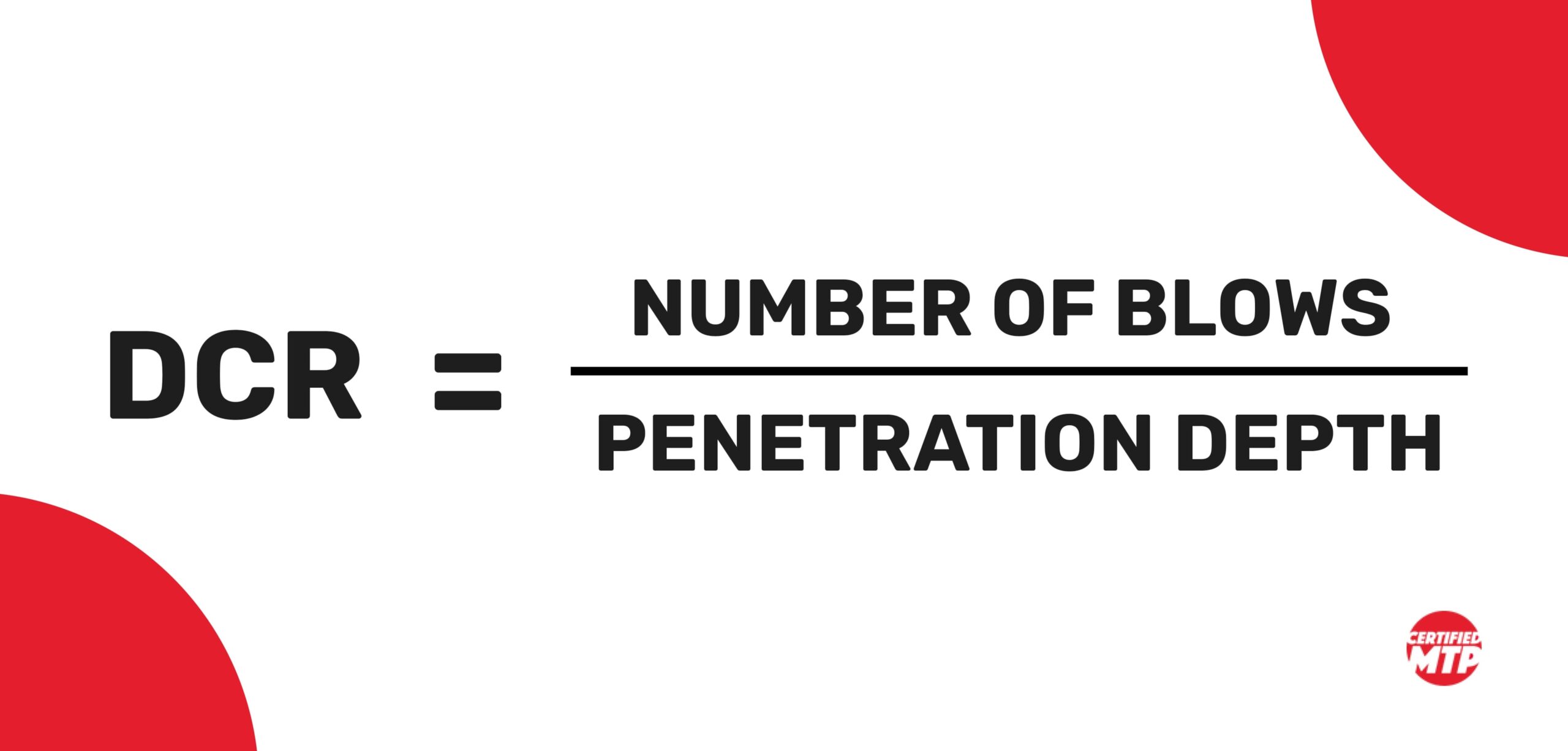

The collected data is used to calculate the Dynamic Cone Resistance (DCR), a measure of the soil’s resistance to penetration. The formula determines the DCR:
DCR = Number of blows ​/ Penetration depth
This value helps in understanding the soil’s bearing capacity and compaction quality. The penetration rate of the dynamic cone penetrometer can also be used to estimate soil density if the soil type and moisture content are known.
6. Interpreting results
Engineers interpret the DCP results by comparing the DCR values with established benchmarks for different soil types and compaction levels. Higher DCR values typically indicate denser, more vigorous soils with higher shear strength, while lower values suggest looser, weaker soils. These interpretations guide decisions on soil suitability for construction, necessary soil improvements, and foundation design.
7. Creating soil profiles
The depth-wise data collected from the DCP test allows engineers to create detailed soil profiles. These profiles illustrate variations in soil strength at different depths, helping identify layers of various materials and conditions, such as weak zones or highly compacted layers.
8. Applications and adjustments
Based on the Dynamic Cone Penetrometer results, engineers can make real-time adjustments to construction plans. For instance, if weak soils with low shear strengths are identified, additional compaction or soil stabilization techniques can be employed. Similarly, strong soil layers can confirm the adequacy of the planned foundation design.
Know what equipment to use
When conducting a DCP test, selecting the appropriate dynamic cone penetrometers is crucial for obtaining accurate and reliable results. We prepared a guide to the essential equipment needed for a successful DCP test that the Certified Material Testing Products platform offers:

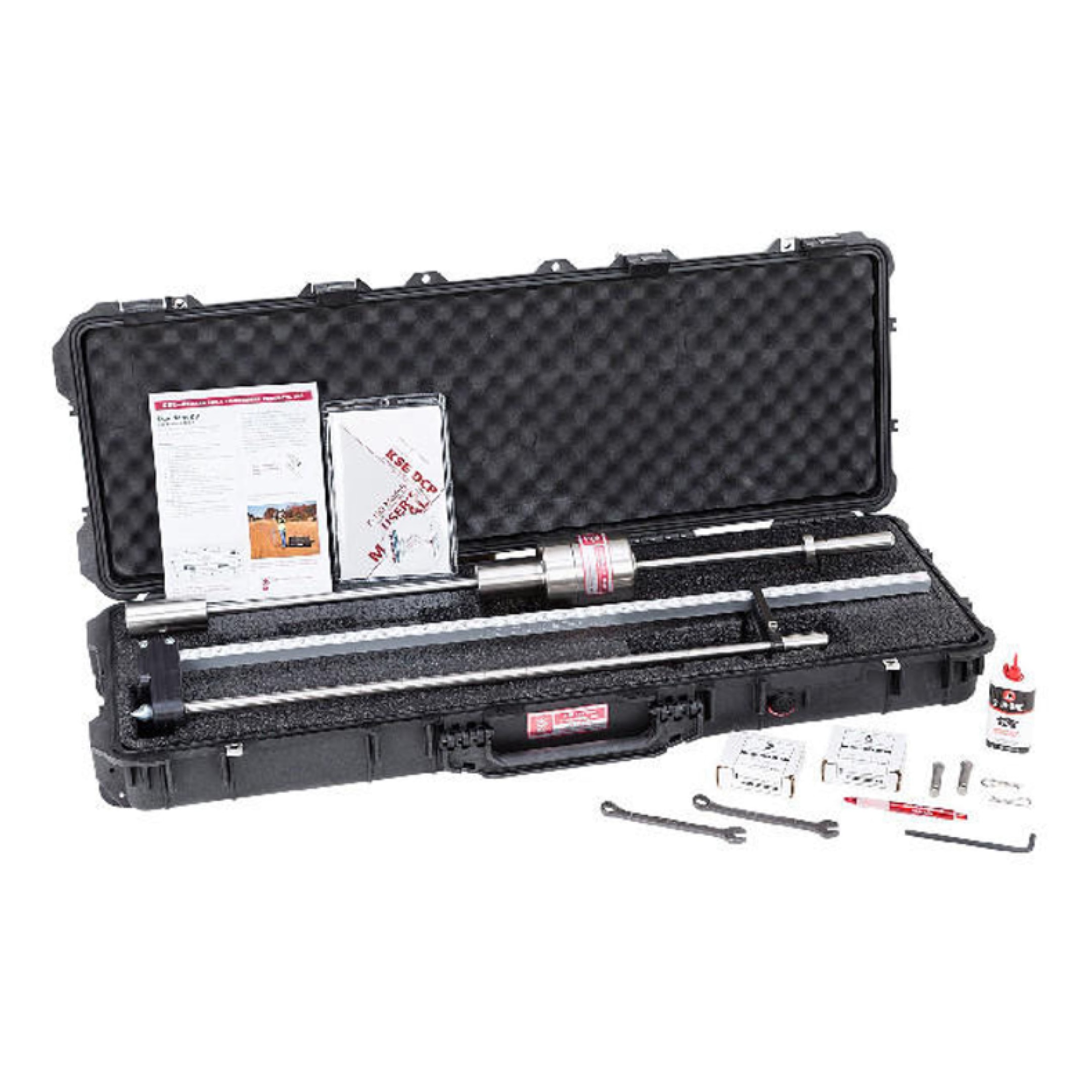

Dynamic Cone Penetrometer with Dual-Mass Hammer
Our Dynamic Cone Penetrometer with Dual-Mass Hammer is effective in soils with California Bearing Ratio (CBR) values ranging from 0.5 to 100. The Dual-Mass Hammer Assembly aids penetration in higher-strength soils. This 8 kg (17.6 lb) hammer is constructed of stainless steel. The hammer can be quickly converted to a 4.6 kg (10.1 lb) unit for better test values in weaker soils with CBR values of ten or less. When using drive rod extensions, skin friction along the extensions can impact the testing process by changing the mass and inertia of the device.

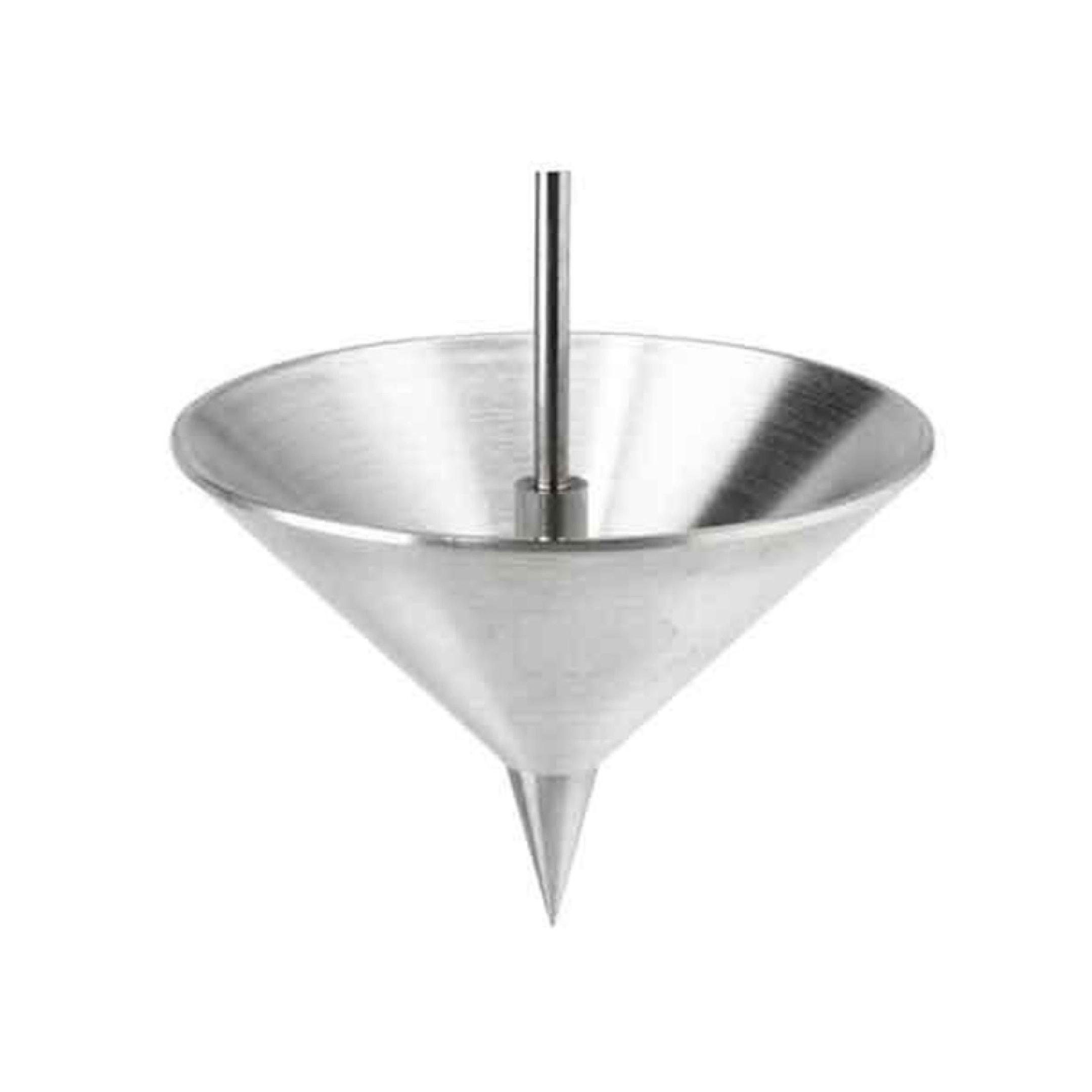

Dynamic Cone Penetrometer Cone
In fact, penetration cones are compatible with Manual and Automatic Universal Penetrometers and designed to test asphalt binder, grease, and other materials. Manufacturers craft each cone from different durable metals and offer them in three models.
The Grease Penetration Cone, Hollow Stainless Steel, adheres to ASTM D217 and ASTM D937 standards for grease testing. Featuring a 90° cone angle with a removable 30° highly-polished stainless steel tip, including a detachable nut and stem. The total weight of the cone is 102.5g (0.266lb).
Conclusion on Dynamic Cone Penetrometer
The DCP’s straightforward operation and reliable results help engineers make informed decisions, leading to safer and more efficient construction practices. As infrastructure demands grow, the DCP’s role in ensuring foundational material stability remains crucial. The DCP test significantly advances and ensures the safety of civil engineering projects worldwide.
Visit our e-commerce platform today to explore our wide range of construction materials testing equipment for lab and field use. From concrete and aggregate to soil and civil engineering tools, we have everything you need to ensure the success and safety of your projects. Shop now and build with confidence!
FAQ about Dynamic Cone Penetrometer
How to make a cone with specific measurements?
Determine the desired height and base radius to make a cone with specific measurements. Draw a circle sector with a radius equal to the cone’s slant height. Calculate the sector angle based on the base circumference. Cut out the sector, form the cone by joining the edges, and secure with tape/glue.
What are the layered soil samples called?
Each layer, or horizon, has distinct physical and chemical characteristics that differ from those above and below. These layers include the O horizon (organic matter), A horizon (topsoil), E horizon (eluviation layer), B horizon (subsoil), C horizon (parent material), and R horizon (bedrock).
What does a cone penetrometer do?
Geotechnical engineers use a cone penetrometer to assess soil properties. It measures the resistance of soil to penetration by a cone-tipped probe. The data obtained from a cone penetrometer test (CPT) provides valuable information on soil stratigraphy, strength, etc.
When to use a Dynamic Cone Penetrometer test?
Engineers use a Dynamic Cone Penetrometer test to determine the strength of soil and pavement materials. It is beneficial in assessing the strength of subgrade soils and granular base layers. You should use a DCP test when you need a quick, cost-effective method for evaluating soil strength on-site.
