Concrete maturity is a game-changer in the construction industry. But what exactly is it, and how does it revolutionize the way we estimate concrete strength? In this blog post, we will delve into the world of maturity testing analysis, exploring its key concepts, benefits, and practical applications in real-world construction projects. Say goodbye to the guesswork and prepare to be enlightened.
Maturity Testing: Key Takeaways
- Maturity tests are a non-destructive technique for estimating concrete strength and provide real-time data to enable informed decisions.
- ASTM C1074 is the widely accepted standard practice, which involves creating a temperature-time relationship for accuracy.
- Maturity tests offer cost savings compared to break tests & field-cured cylinders while providing insight into safety, efficiency & quality control in construction projects.
The Concept of Maturity Tests
Maturity tests are a groundbreaking method for estimating concrete strength that overcomes the limitations of traditional destructive tests. The maturity method, which involves tracking the temperature of fresh concrete over time, enables construction professionals to precisely estimate the in-place strength of concrete, eliminating the need for casting and breaking cylinders. This method involves plotting a maturity curve to track the relationship between temperature and strength gain over time.
In a fast-paced industry, this non-destructive testing technique provides the accurate data needed to make informed decisions on the job site.
What are Maturity Tests?
Maturity tests are a non-destructive method that allows construction professionals to evaluate in-place concrete strength. It offers a real-time estimation of early age and compressive strength. The foundation of the maturity method testing lies in the maturity concept, which states that samples of a given concrete mix will exhibit the same strength if they possess the same maturity index. The maturity method uses the temperature history of fresh concrete to calculate maturity values and subsequently estimate the concrete’s strength.
The most prevalent method for ascertaining the maturity of concrete is the temperature-time factor method. This method involves two cylinders:
- Establishing a strength-maturity relationship graph for the proposed concrete mix
- Measuring the temperature history by embedding sensors at critical locations using a maturity monitoring system
- Computing the maturity index using the temperature and age values
- Comparing the maturity index with the strength-maturity relationship to estimate the in-place strength of field concrete.
Why Maturity Method Testing Matters
Maturity method testing has become an indispensable tool in the construction industry, as it offers numerous benefits over traditional testing methods. Maturity testing offers:
- Real-time data on concrete strength at the job site
- The maturity curve helps in visualizing the real-time data on concrete strength
- Allows construction teams to assess concrete’s performance
- Reduces reliance on standard test specimens and laboratory testing
- This can translate into significant time and cost savings
- Allows the team to monitor maturity and swiftly determine when concrete has achieved its required strength
Moreover, concrete maturity meters enable project managers to obtain precise data readings, allowing them to make instantaneous decisions and attain equal values in their assessments. With the Equivalent Age Method and Nurse-Saul function offering alternative maturity testing methods, construction professionals have several options to choose from when it comes to ensuring the quality, safety, and efficiency of their projects.
Maturity testing is not just a luxury, but a necessity for modern construction projects.
ASTM C1074: The Standard for Maturity Testing
The American Society for Testing and Materials (ASTM) C1074 standard practice for maturity testing is a widely recognized technique for estimating concrete strength. This standard is based on the assumption that samples of concrete testing a given concrete mixture reach equal strengths when they reach equal values of the maturity index.
The ASTM C1074 standard involves determining the datum temperature for accurate maturity calculations.
Adherence to ASTM C1074 guidelines ensures the accuracy and reliability of maturity testing data for construction professionals.
Calibration Process
The calibration process is an essential component of the ASTM C1074 standard, as it establishes the precise correlation between the strength of the concrete and its maturity. To determine the relationship between maturity and strength for a specific concrete mix, the calibration process involves creating a temperature-time-strength relationship, commonly referred to as a calibration curve or chart for maturity testing on concrete, using datum temperature as a reference point. The tests and readings are obtained by performing laboratory tests.
On the construction site, the recorded concrete temperature, and age values generate a maturity index. This index can then be used with a standard graph demonstrating the maturity-strength relationship to estimate the concrete’s strength. Following the ASTM C1074 calibration process ensures accurate and reliable data, allowing construction professionals to make informed decisions about their projects.
Temperature-Time Factor and Equivalent Age Methods
In maturity testing, there are two primary methods utilized: the temperature-time factor method and the equivalent age method. The temperature-time factor method calculates the maturity index using temperature and time measurements expressed in °C hours or °C days. On the other hand, the equivalent age method uses the maturity index to calculate the equivalent age of the concrete. By comparing these methods, one can determine the maturity index value for a specific concrete and mix design.
The Nurse-Saul Equation is a formula employed in the temperature-time factor method to calculate the maturity value, taking into account the temperature ‘Ta’ obtained by a maturity monitoring system at a given time and the datum temperature ‘Td’ determined by the procedure specified in ASTM C1074. It is important to note that the precision of the calculated Nurse-Saul function decreases due to the broad range of curing temperatures.
Both methods have their advantages and drawbacks, and the choice between them depends on the specific requirements of the project
Implementing Maturity Testing on the job site
Implementing maturity testing on the job site can be a straightforward process with the right tools and techniques at hand. From selecting the appropriate maturity measure strength meter to understanding the calibration process, construction professionals can seamlessly integrate maturity testing into their projects to ensure accurate and real-time data on concrete strength.
A maturity monitoring system is essential for accurate and real-time data collection on concrete strength.
Types of Maturity Meters
A variety of maturity meters are available for measuring concrete strength, for example including different types of maturity monitoring systems such as:
- Concrete thermocouples
- Wired temperature and maturity loggers
- Wired concrete sensors with external wireless transmitters
- Humboldt maturity meters
The choice of maturity meter depends on factors such as cost, precision, usability, project requirements, and budget.
Each type of maturity meter has its advantages and disadvantages. Here are the different options:
- Concrete thermocouples: These are the most economical option, but they are not as precise as other types of maturity meters.
- Wired temperature and maturity loggers: These are more precise, but they are more costly and require additional setup time.
- Wired concrete sensors with external wireless transmitters: These offer the most accurate and dependable results, but they are also the most expensive.
Cold Weather Concreting
Cold weather concreting, defined as when the air temperature has fallen to or is anticipated to fall below 40°F (4°C) during the protection period, can pose challenges in ensuring proper curing and strength development of concrete. Maturity testing can play a critical role in monitoring and controlling concrete temperature during cold weather concreting, ensuring that the concrete cures correctly and achieves its design strength.
Determining the datum temperature is crucial for accurate maturity calculations in cold weather concreting.
To prevent issues such as cracking, sudden temperature fluctuations, and decreased durability, it is essential to follow cold weather concreting practices and guidelines. Strategies for monitoring and controlling concrete temperatures during cold weather concreting include utilizing insulation, windbreaks, and heated enclosures. Close monitoring of the curing process and implementing appropriate measures can help construction professionals avert potential problems and maintain the quality and strength of their concrete in cold weather conditions.
Comparing Maturity Testing with Other Concrete Strength Assessment Methods
Maturity testing offers numerous advantages over alternative methods of assessing concrete strength, such as break tests and field-cured cylinders. Some of the advantages of maturity testing include:
- Offering real-time data on concrete strength
- Enabling accurate predictions of in-place strength
- Providing a non-destructive testing method
- Allowing for early removal of formwork and shoring
- Reducing construction time and costs
The maturity curve provides a visual representation of the concrete strength over time, highlighting the advantages of maturity testing.
With these benefits, maturity testing has become an irreplaceable tool in the construction industry.
Break Tests

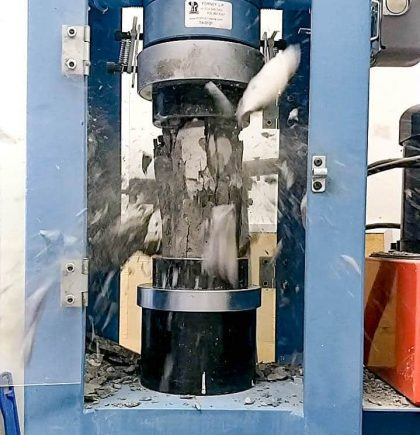

Break tests are the most common destructive method for measuring concrete strength. They determine the force required to break a concrete sample. Although widely used, this method has limitations. Inaccurate results can occur due to improperly prepared, handled, or tested cylinders. Additionally, break tests are time-consuming and labor-intensive. Samples must be sent to a laboratory, and results can take several days.
Despite these drawbacks, break tests can lead to significant cost savings. They can save up to 50% in direct test costs for on-site team members determining the in-place strength of concrete. Labor cost savings can also be substantial. Accurate job-site planning for each floor of a high-rise building can result in up to $10,000 in labor savings by reducing uncertainty in project scheduling and delays in receiving lab reports.
Field-Cured Cylinders

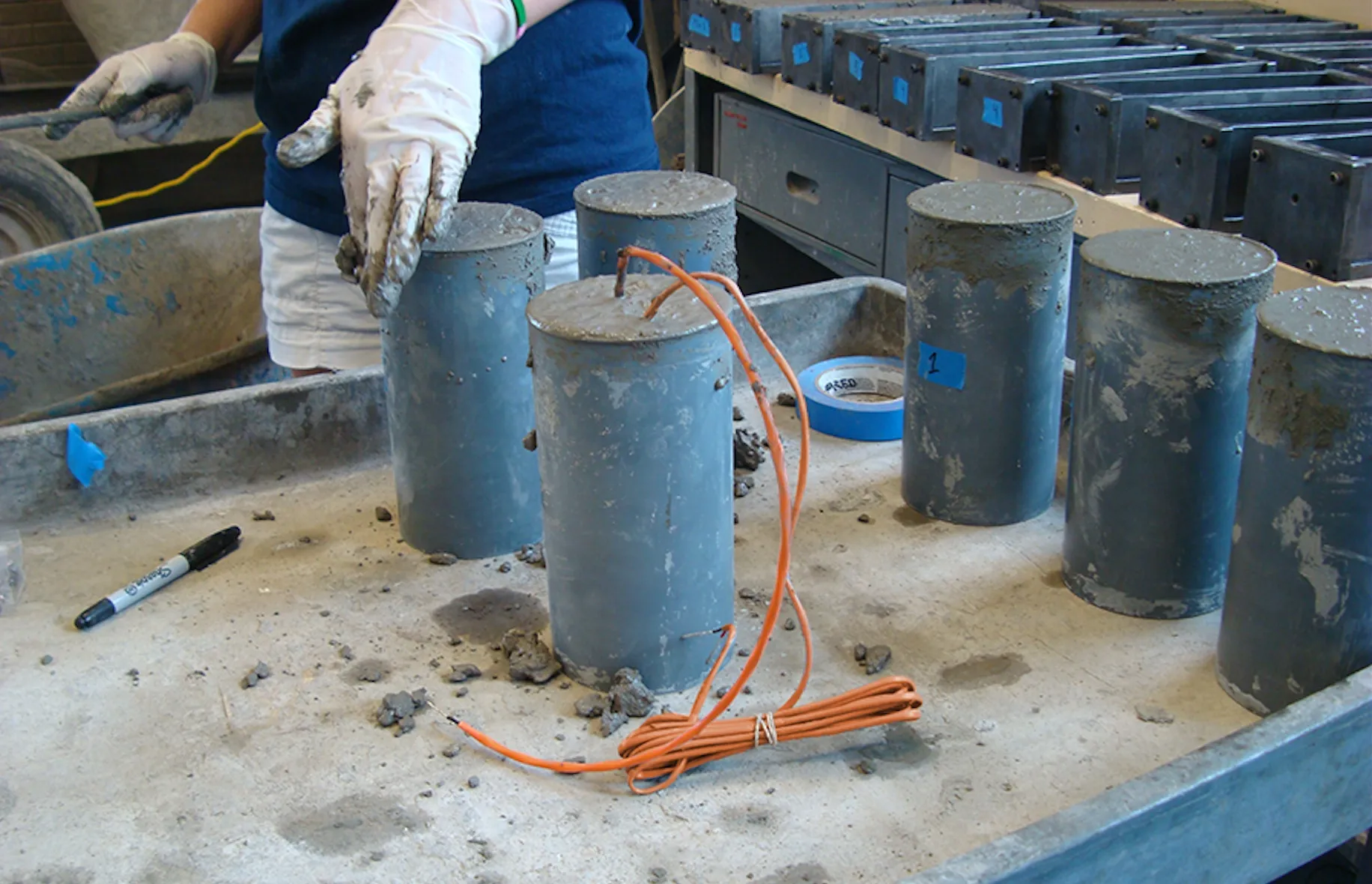

Field-cured cylinders are concrete test specimens that are cured in the same temperature and moisture conditions as the structural work. They are used to assess the performance and strength of concrete in the field. However, field-cured cylinders may not always provide accurate strength estimation due to their susceptibility to extreme weather conditions, including high temperatures, low temperatures, and high humidity.
Extreme weather conditions can lead to an incorrect estimation of strength due to the accelerated or delayed curing of the concrete. While field-cured cylinders can be a viable option for strength estimation, caution should be exercised when utilizing them in extreme weather conditions.
Understanding the limitations of field-cured cylinders and other traditional concrete strength assessment methods highlights the importance and advantages of employing maturity testing in construction projects.
Real-World Applications of Maturity Testing
Maturity testing has proven to be a versatile and invaluable tool in the construction industry, with a wide range of real-world applications. Some of these applications include:
- Form removal
- Post-tensioning
- Quality control
- Compliance
A maturity monitoring system is essential for real-time data collection and decision-making in construction projects.
Maturity testing enables construction professionals to make informed decisions about their projects, ensuring the safety, efficiency, and dependability of their structures.
Form Removal and Post-Tensioning

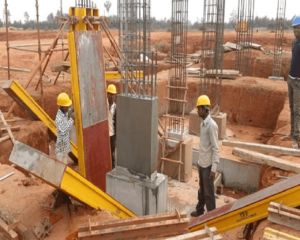

Form removal, or the process of taking away the formwork or molds used to shape and support freshly poured concrete until it hardens and gains adequate strength, is a critical operation in construction projects. Maturity testing can provide real-time insight into the strength of concrete, thus enabling the timely completion of concrete formwork removal and other critical operations. This can help to expedite construction projects by allowing operations to be completed at an earlier stage.
Post-tensioning is a common method of reinforcing concrete with high-strength steel strands or bars. Maturity testing can be advantageous for this operation. By providing real-time data on concrete strength, maturity testing helps construction professionals determine the optimal timing for post-tensioning. This ensures the concrete has reached the required strength before proceeding.
Quality Control and Compliance
Maturity testing, a crucial aspect of concrete testing, is essential for ensuring quality control and adherence to project specifications and industry standards. By providing real-time data on concrete strength, maturity testing enables construction professionals to make informed decisions about their projects, guaranteeing the safety, efficiency, and dependability of their structures.
Data management enables informed decision-making by ensuring accuracy and timeliness. As construction projects become more complex, the need for accurate and reliable concrete strength data increases. Maturity testing provides real-time data and insights, making it indispensable for construction professionals to ensure quality and compliance.
Advancements in Maturity Testing Technology
Recent advancements in maturity testing technology have led to more precise and efficient tools for assessing concrete strength. Innovations like wireless sensors and data management systems have revolutionized how construction professionals monitor and analyze concrete strength. These tools enable more informed decisions and optimized strength gain for their projects. Modern maturity monitoring systems have revolutionized the way concrete strength data is collected and analyzed.
These advancements have streamlined the process for construction professionals to monitor and analyze concrete strength data,
Wireless Concrete Sensors

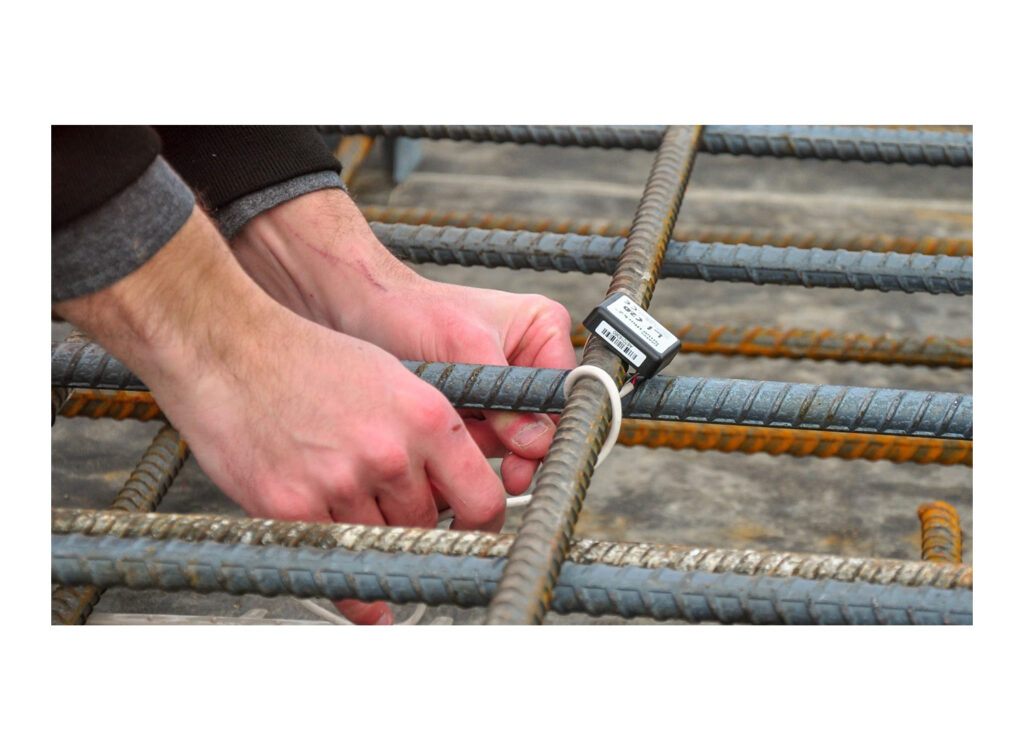

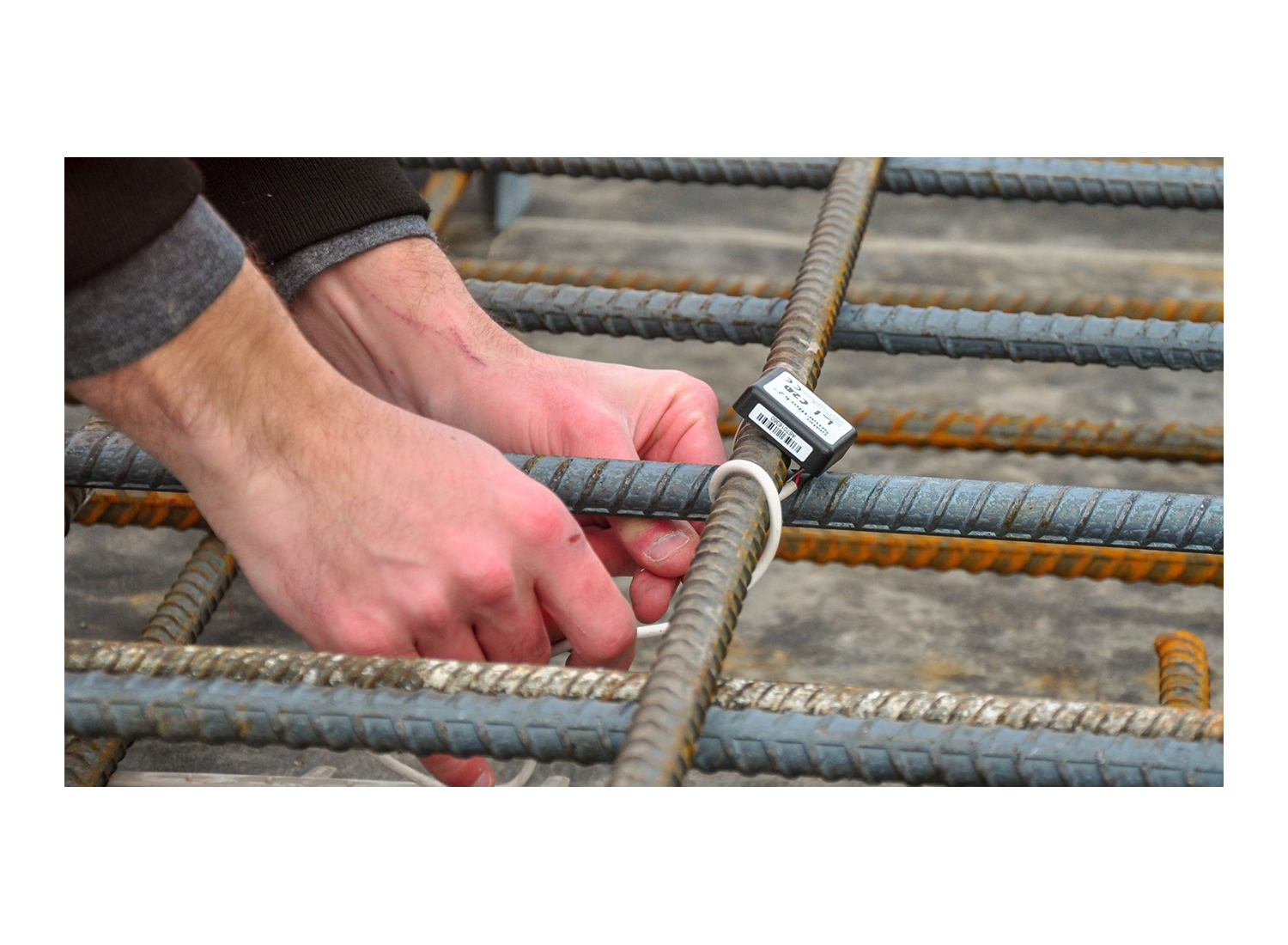

Fully embedded wireless concrete sensors are a cutting-edge innovation in maturity testing technology. These sensors offer several advantages:
- They are embedded in the rebar before concrete pouring, allowing data to be collected via Bluetooth on a mobile device or tablet.
- This eliminates the need for expensive data loggers.
- It reduces the risks associated with damaged or cut wires.
- It eliminates the potential for inaccurate readings due to crossed wires in the plug during the assembly of thermocouples.
Fully embedded wireless concrete sensors can significantly enhance efficiency in fast-paced construction projects and reduce labor costs. These sensors provide real-time data on concrete strength, giving construction professionals the information they need to make informed decisions. This ensures the safety, efficiency, and reliability of their structures.
Data Management and Decision-Making
Modern software solutions for data management and decision-making have transformed the way construction professionals analyze and utilize maturity test results. By streamlining data collection and storage, these solutions facilitate:
- Faster and more accurate decision-making processes
- Real-time insights into data
- Rapid decision-making
- Ensuring data accuracy and security
Data management plays a critical role in maturity testing for concrete strength, as it allows construction professionals to make data-driven decisions based on the results of their tests. Leveraging modern software solutions and data management techniques, construction professionals can bolster the quality, safety, and efficiency of their projects.
Summary
Maturity testing has revolutionized how construction professionals estimate concrete strength. It offers a more accurate and efficient alternative to traditional destructive tests. Advances in technology, like wireless sensors and data management systems, have made maturity testing indispensable in construction. By understanding its concepts, benefits, and applications, professionals can make informed decisions about their projects. This ensures the safety, efficiency, and dependability of their structures. Embrace maturity testing to elevate your construction projects to new heights.
Frequently Asked Questions
What is the process maturity test?
The Process Maturity Test measures and assesses the level of improvement and formalization of the testing process. It follows the Capability Maturity Model (CMM), providing a benchmark to develop and measure process performance levels. These levels range from ad hoc and chaotic to optimized and mature.
What are the 5 maturity levels?
The five maturity levels of the Capability Maturity Model are Initial, Managed, Defined, Quantitatively Managed, and Optimized. This model assesses an organization’s maturity on a five-point scale.
What is the test maturity model based on?
The Illinois Institute of Technology first developed the Test Maturity Model (TMM). It is based on the Capability Maturity Model (CMM). TMM offers a reference framework for improving the testing process. It provides techniques for each organized stage of the model.
What is the maturity rule of concrete?
Concrete maturity is determined by measuring the relationship between temperature, time, and strength gain. This indicates how far curing has progressed. It is also represented by an index value that can be measured in real-time.
How does the temperature-time factor method differ from the equivalent age method in maturity testing?
The temperature-time factor method calculates the maturity index using temperature and time measurements. The equivalent age method uses the maturity index to determine the concrete’s equivalent age.
