Rheometry is the science of deformation and flow, measuring how materials like polymers, foods, and industrial compounds withstand forces and behave under stress. If you’re seeking to grasp material consistency or enhance product quality, rheometry provides the essential data needed. This guide unpacks rheometry’s role in material analysis without delving into the complex specifics reserved for the following sections.
Key Takeaways in Rheometry
- Rheometry is critical for understanding the deformation and flow of materials under applied forces, and it employs specialized instruments called rheometers to measure properties such as viscosity, viscoelasticity, and flow behavior.
- Shear stress and shear rate are key in rheological analysis. Controlled stress rheometers measure shear stress to understand material behavior. Shear rate is crucial for studying non-Newtonian fluids, where viscosity changes with deformation rates.
- Rheometry is used in many industries for quality control. It simulates processing conditions and characterizes materials. This ensures consistency and reliability, and helps diagnose manufacturing issues.
Exploring the Fundamentals of Rheometry
Rheometry studies how materials deform and flow when forces are applied. It provides crucial insights into the rheological properties of materials, both qualitative and quantitative. This analysis predicts how fluids behave under different forces.
- Figuring out how a material or liquid deforms when an external force is applied
- Determining the viscosity of a fluid
- Analyzing the flow behavior of materials under different conditions
By studying rheology, scientists and engineers can gain valuable insights into the behavior of materials and develop better products and processes.

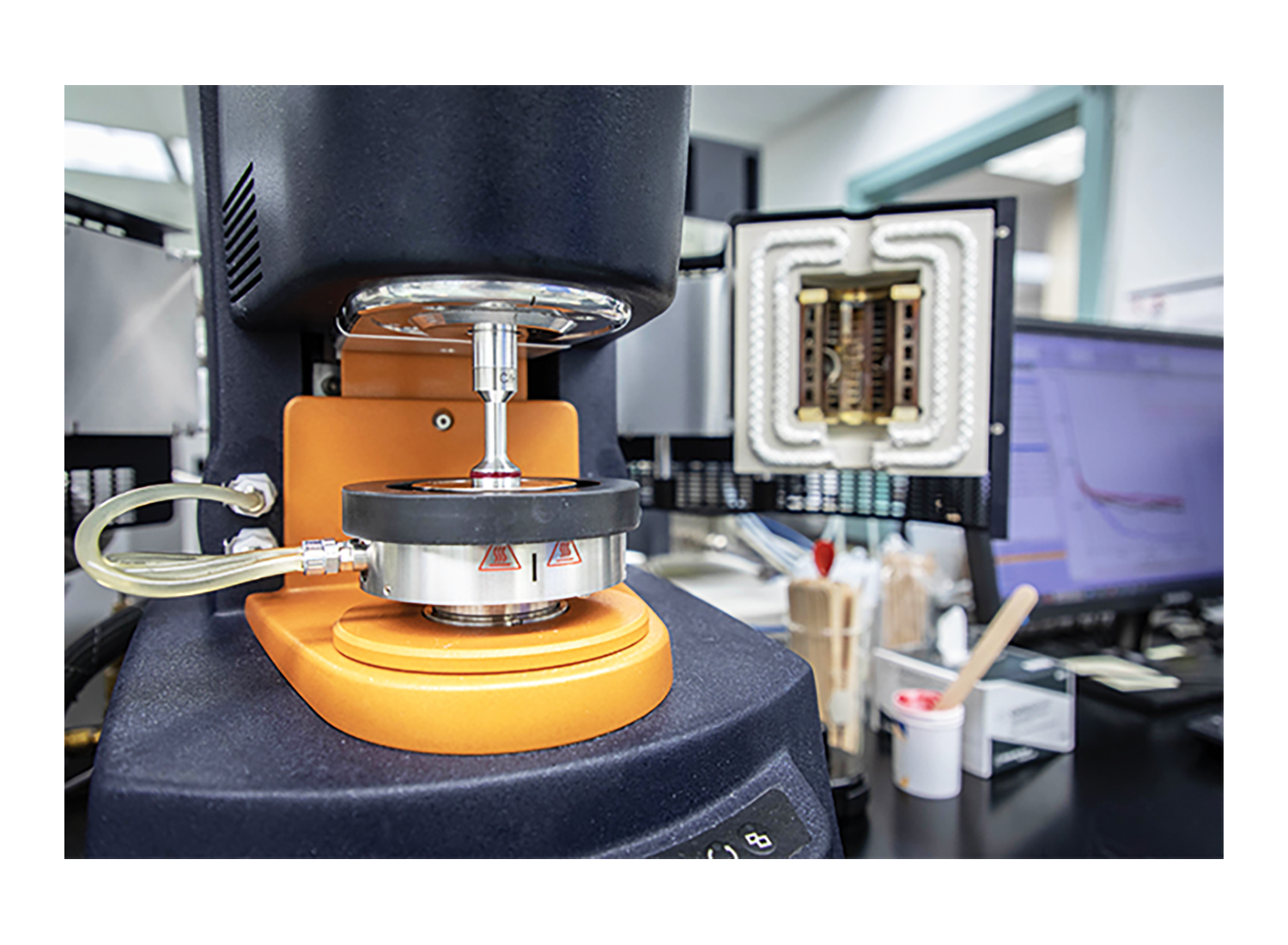

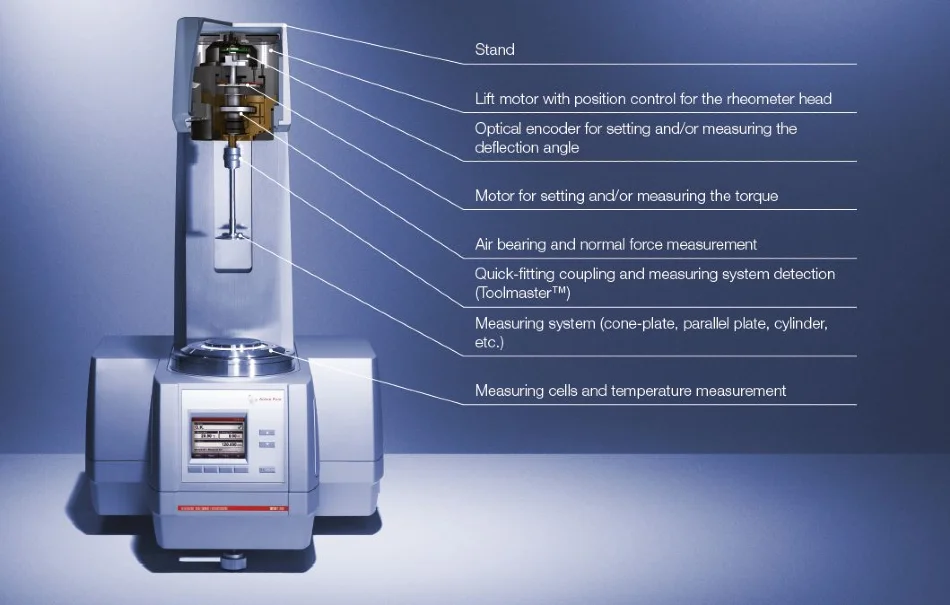

A rheometer works by applying or measuring torque, angular displacement, and angular velocity. It uses different methods of testing, including rotational and oscillatory modes, to understand the material’s viscosity and viscoelastic properties. A rheometer measures the flow properties of materials. It applies or measures parameters to distinguish between fluid behaviors. This provides insights into properties like viscosity and viscoelasticity.
Viscosity is a fundamental concept in rheometry, reflecting a material’s internal resistance to flow. Factors that measure viscosity such as particle size influence it, providing an overview of a substance’s flow characteristics. Viscoelasticity measures how materials deform and dissipate energy under force. Rheometers are crucial here. They assess rheological properties, helping to understand the flow behavior of various materials, beyond just consistent viscosity. This allows researchers to gain insights into material behavior.
The Role of Shear Stress in Rheological Analysis
In the realm of rheometry, shear stress plays a pivotal role. The force per unit area applied parallel to a material’s surface characterizes the material’s structure and flow behavior under applied stress and deformation conditions. Shear stress applied during rheological testing simulates real-world conditions like pumping, squeezing materials, or defining the force needed to start moving a material at rest.
Controlled stress rheometers use applied torque, including electrical torque, to control stress and encourage strain. This process generates reliable data and helps understand materials’ resistance to flow. They measure and calculate shear stress using torque and shear surface area. This ensures laminar flow during tests. It’s crucial for viscosity calculations and material characterization.
Shear Rate: The Pulse of Rheological Measurements
Rheology’s next key concept is the shear rate. Cone and plate rheometers measure torque using a shallow cone in liquid on a plate, effectively studying flow behavior. This setup guarantees a constant shear rate across the material sample during testing. It achieves consistent characterization by rotating the cone at a specific speed.
Shear rate is crucial for studying non-Newtonian fluids, as their viscosity changes with deformation rates. This highlights a non-linear link between shear stress and shear rate. Its beauty is in its consistency. We use a conversion factor to calculate it, making it independent of the rheometer’s measuring system. However, when using cone-and-plate geometry, one must ensure particles do not get trapped beneath parallel plates at the cone’s center, as it can affect measurement accuracy.
Importance of Shear Rate in Food Science
Rheometry goes beyond lab experiments; it’s key in the food industry. It assesses the flow properties of ingredients and final products. This affects consumer experience and ensures product standards. By mimicking food handling during processing or preparation, it reveals how food behaves. It also shows how flavors and nutrients are released during chewing and digestion.
Shear rate significantly impacts the texture and sensory properties of food products. It optimizes meat analogs and achieves the ideal creamy texture in milk alternatives and zero-fat yogurts. Knowing how food materials react to various shear rates optimizes processing equipment. This is vital for product quality and consistency.
Shear rate knowledge is vital in the food industry. It helps predict food material flow during processing and transportation. It also manages the flow of non-Newtonian fluids like ketchup.
Shear Thinning Fluids and Their Behavior

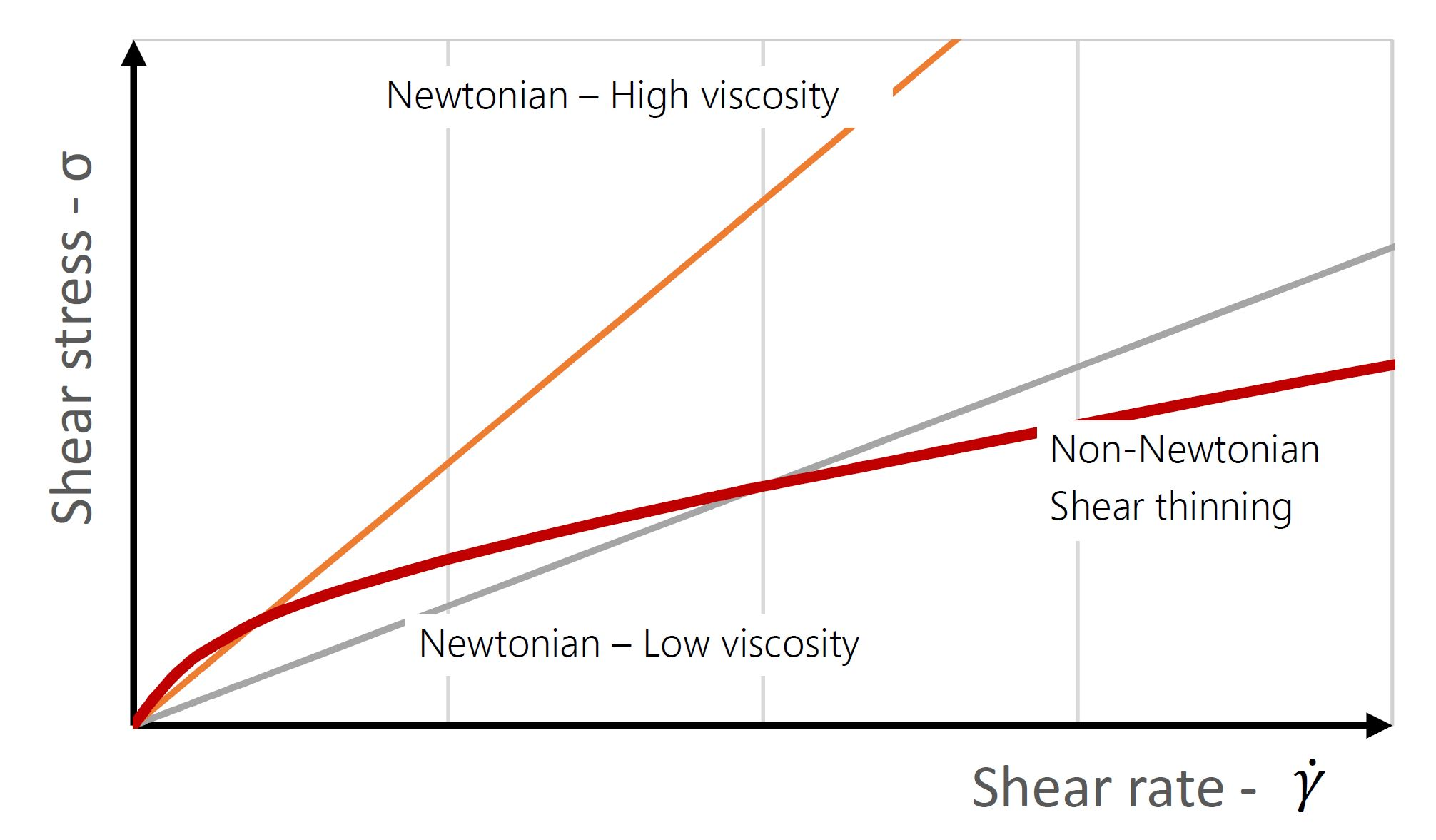

In rheology, some fluids are unconventional. Shear thinning fluids become less viscous as shear rate increases, showing pseudoplastic behavior. The power-law index quantifies shear thinning in complex fluids. A smaller index means more pronounced shear thinning.
Common materials like ketchup, paints, and blood show shear thinning behavior. This is key for their use and processing. This behavior helps in spraying and spreading. Lower viscosity under high shear rates makes application easier.
Viscoelasticity: A Key Rheological Parameter

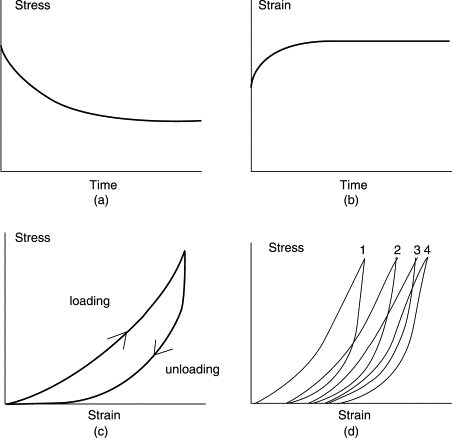

Viscoelasticity adds another intriguing dimension to rheology. It refers to materials that exhibit a combination of viscous and elastic behavior when subjected to shear forces. These unique properties are assessed using rheometry. The storage modulus (G’) quantifies the elastic behavior of a material by indicating energy storage during deformation. In contrast, the loss modulus (G’’) measures the energy dissipated as heat due to viscous effects.
A rotational rheometer can determine a material’s overall viscoelastic response by measuring the complex shear modulus. The phase angle and the ratio of the loss modulus to the constant value of the storage modulus offer additional insights into the viscoelastic properties.
Oscillatory Testing for Viscoelastic Materials

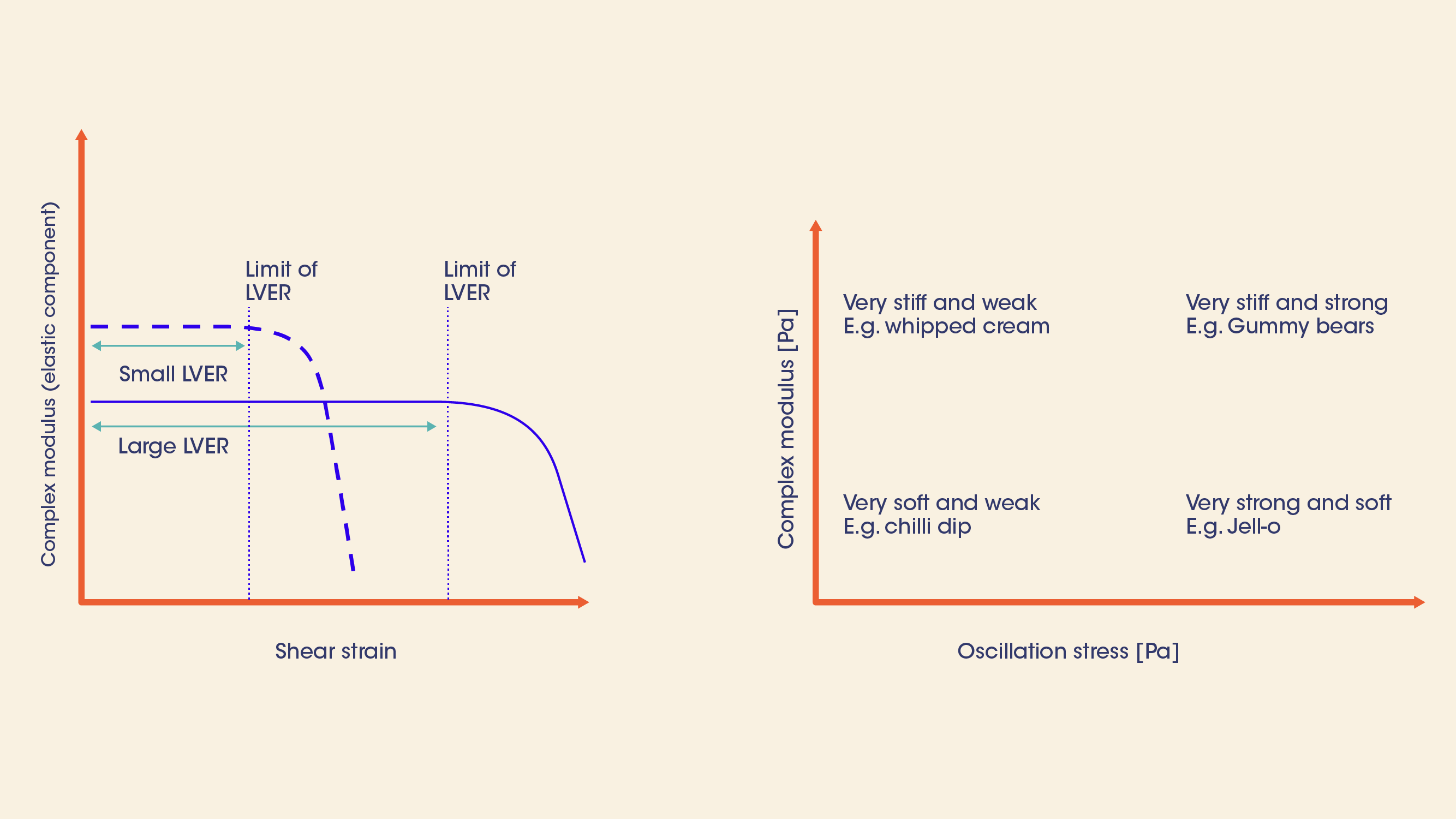

Oscillatory testing emerges as a formidable technique in rheology. It involves applying a sinusoidal strain to a sample and measuring the amplitude sweep of the resulting stress to analyze its viscoelastic properties. Amplitude sweeps in oscillatory testing assess the material’s deformation behavior within the non-destructive range, determining the linear viscoelastic region where the structure is maintained.
If the storage modulus G’ is greater than the loss modulus G’’, the material behaves like a solid. Conversely, if G’’ is greater, it behaves like a liquid. Assessing G’ and G’’ curve behaviors helps evaluate gel strength or stiffness and behavior upon structural breakdown.
Frequency sweeps in oscillatory testing reveal how viscoelastic materials respond to different deformation rates, simulating conditions akin to both rapid and slow movements.
Controlled Stress vs. Controlled Strain Rheometers
Rotational rheometers primarily fall into two categories: strain-controlled, where a user-defined shear strain is imposed, and stress-controlled, where a user-defined shear stress is applied. Rheometers can be categorized based on their design and measurement principles, such as analytical or experiential. Understanding the measurement geometry and principles like rotation, creeping, and relaxation is crucial for different applications. Controlled stress rheometers are capable of measuring the torque response accurately, crucial for determining the applied shear stress and analyzing material behavior under stress.
These rheometers gradually increase stress to observe the yield point, crucial for determining yield stress and the onset of material flow. On the other hand, in controlled strain rheometers, the user sets the speed or deflection angle, and the instrument measures the strain rate resulting in torque using a separate torque re-balance transducer in the combined motor transducer mode.
Advanced Rheometry Techniques
Advanced techniques in rheometry, while offering an exciting exploration, are as fascinating as the fundamentals, if not more. Extensional rheometers, for instance, are key for materials subjected to tensile deformation, such as during injection molding and fiber spinning. They can measure extensional stress, viscosity, and uniaxial strain.
Methods in extensional rheometry can provide data on the strain hardening of elastic polymers and force requirements for peeling or separating adhesive films of purely elastic material under various conditions. Acoustic rheometers use high-frequency ultrasound waves to analyze the elasticity and viscosity of fluids with short relaxation times, based on sound speed and attenuation measurements.
Additionally, Falling plate rheometers offer insights into the extensional flow properties of test fluid by measuring the force necessary to extend the flow curve of a liquid between two plates against gravity.
Dynamic Rheology for Soft Solids
Dynamic rheology has a special place in the study of soft solids such as gels, pastes, and creams. It examines the viscoelastic characteristics of these materials, providing insightful data for various applications.
The storage modulus is particularly indicative of the elastic qualities of a soft solid’s viscoelastic behavior, reflecting its solid-state characteristics.
Capillary Rheometers for High Viscosity Fluids
Capillary rheometers are another powerful tool in rheometry. They are used to force liquid through a tube, providing a measure of both the flow rate and pressure drop. This allows for determining the shear rate and shear stress of the liquid. Their precision in generating specific shear rates makes them ideal for analyzing the flow properties of high-viscosity fluids such as polymer melts.
This makes them the preferred instrument for measuring points characterizing thermoplastic materials in research, particularly for measuring viscosity at high shear rates, pertinent to polymer processing.
Temperature Control in Rheological Measurements
Practical Applications of Rheometry in Quality Control

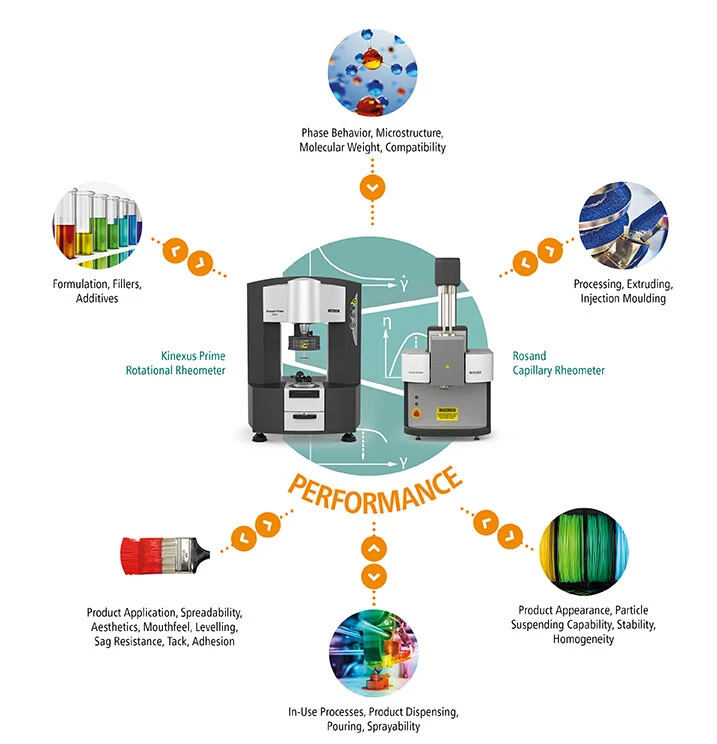

Rheometry goes beyond the realm of theoretical science, finding practical applications in quality control across various industries, thereby ensuring product consistency and reliability. Quality control laboratories use rheometry to simulate real-world processing conditions, thereby optimizing manufacturing processes such as injection molding and extrusion.
Rheological measurements support the development of new products and ensure material supply quality, minimizing reject rates and contributing to efficient reduction validation processes.
Rheometry in Action: Case Studies
Rheometry is crucial in many real-world applications. It spans from the food industry to biomedical fields. Capillary rheometers play a key role in industrial settings. They diagnose processing issues without stopping production lines.
Continuous rheological monitoring is crucial in the food industry. Observing changes in potato samples during heating and cooling cycles highlights rheometry’s role in ensuring quality and consistency.
Summary
We’ve journeyed through the world of rheometry, exploring its fundamentals, understanding the role of shear stress and rate, delving into viscoelasticity, and unpacking advanced techniques. Additionally, we’ve seen how temperature control is crucial in rheological measurements and discovered its practical applications in quality control across various industries. Through real-world case studies, we’ve appreciated the immense value rheometry brings to the table.
Certified MTP has an elite selection of Asphalt Binder Testing tools and Rheometers, showcasing industry-leading brands for the Brookfield Viscometers, Saybolt Viscosity Bath, Marshall Stability Test Systems, Marshall Compactor Test Equipment and Molds, Marshall Water Baths for Asphalt Testing, Viscometers, and Sample Ejectors for Asphalt Extrusion.
Frequently Asked Questions
What is rheometry explained?
Rheometry is a technique used to measure the deformation of a material or liquid when a force is applied, and it forms the basis of rheology, the science of material deformation.
What is a rheometer used for?
A rheometer measures how viscous fluids flow under applied forces, revealing their rheology. It characterizes substances’ resistance to deformation and flow behavior in labs.
What is the meaning of rheology?
Rheology is the study of the flow and change of shape of matter, primarily in fluid or soft solid states. It involves understanding the deformation and flow behavior of materials.
What is shear stress and why is it important in rheological analysis?
Shear stress measures the force per unit area applied parallel to a material’s surface, playing a crucial role in rheological analysis by characterizing material flow behavior and defining the force needed to start moving a material at rest.
What is the role of shear rate in rheological measurements?
Shear rate is pivotal in rheological measurements as it helps study the flow behavior of materials under varying rates of deformation, especially in non-Newtonian fluids where viscosity varies with different rates of deformation.
